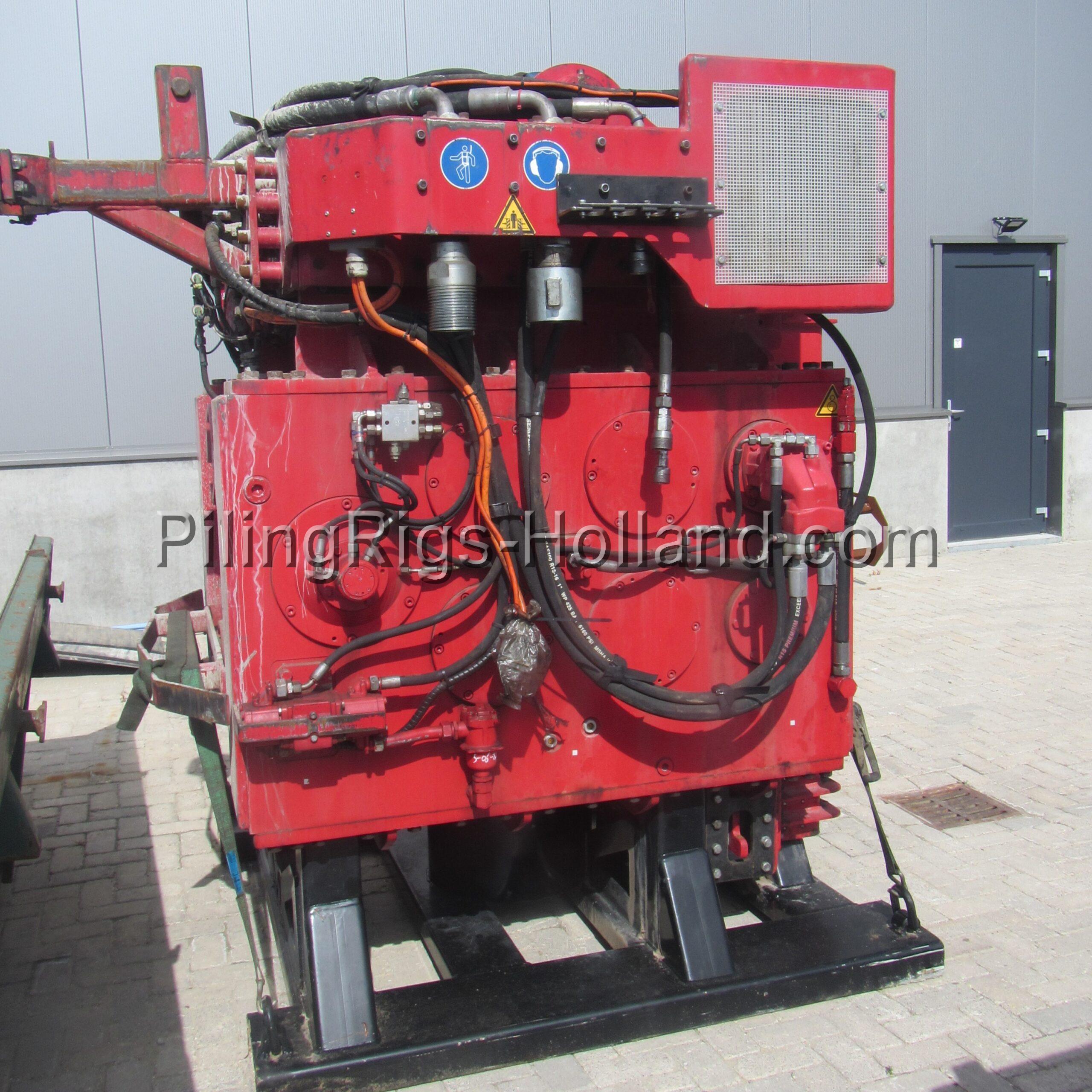

Inpieq RVM20 Ring vibrator
Hardly used variable moment ring vibrator for the production of cast-in-situ piles.
Description
Inpieq RVM20 Ring vibrator
Hardly used variable moment ring vibrator for the production of cast-in-situ piles.
- Constant forced lubrication of both crankcases
- Both crankcases equipped with their own lubrication and cooling system
- Equipped with 2 lubrication oil coolers
- Control panel with start-stop function, clamp controlling and moment adjustment.
- Revolution-, Amplitude- and Temperature meter
Ring vibrator in good working condition.
Transport frame included.
Downloads:
Inpieq RVM20 specifications (NL)
Additional information
| Year of Manufactory | 2017 |
|---|---|
| Max. centrifugal force | 1220 kN |
| Eccentric moment | 0-20 kgm |
| Max. pulling force | 500 kN |
| Max. pressing force | 150 kN |
| Max. power | 406 kW |
| Amplitude | 5,7 mm |
| Weight | 9480 kg |
| Dimensions | 1650 mm x 2250 mm x 2350 mm |
